quote bulletproof helmet mould and die making

Short Description:

high ballistic performance bulletproof helmet moldings made from uhmwpe in taizhou DEYING company,The materials most commonly being used in today’s more advanced body armor are ultra-high-molecular-weight polyethylene (UHMWPE), along with aramid fibers.  UHMWPE has contributed to vast improvements when you compare it to Kevlar, an aramid product.


  • Product Specification: Depend on your sample/drawing design

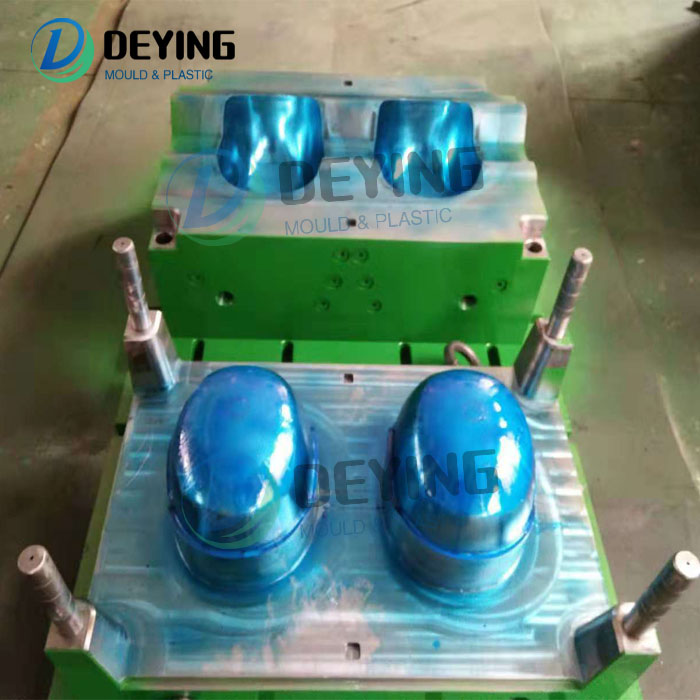

  • Mold Cavity: Single or Multi-cavity
  • Mold Steel: S50C/P20H/718/H13/S136/2316/2738 etc.
  • Mold Runner: Cold/Hot Runner-point way,side way,direct gate
  • Mold Base: LKM,DME,HASCO standard etc,World standard
  • Mould Life: at least 500,000 shots,Depend on mold steel
  • Mould Design Software: UG, PROE, CAD, CAXA etc.
  • Mould Surface Treatment: Mirror polished
  • Export Port: Ningbo/Shanghai
  • Shipping: By Sea or By air
  • Payment: T/T,Western Union,Credit card,E-checking,Paypal,L/C
  • Note: Compression Mould without runner
  • Other: Please inform your requirement when request quote.
  • Product Detail

    Deying Mould Factory Video

    Mold Production Video

    Deying Mold company supplying FAST MICH PASGT ACH model Tactical Kevlar PE Ballistic Helmet Mould,mold heating methods include oil heating, electric heating and steam heating, according to customer requirements.

    Compression fiberglass helmet moldings-1
    Compression fiberglass helmet moldings

    FOUR MAIN STEPS

    There are four main steps to the thermoset composite compression molding process:

    1. A high strength, two part metallic tool is created that exactly matches the dimensions required to produce the desired part. The tool is then installed in a press and heated.
    2. The desired composite is pre-formed into the shape of the tool. Pre-forming is a crucial step that helps to improve the performance of the finished part.
    3. The pre-formed part is inserted into the heated mold. The tool is then compressed under very high pressure, usually ranging from 800psi to 2000psi (depending on the thickness of the part and the type of material used).
    4. The part is removed from the tool after the pressure is released. Any resin flash around the edges is also removed at this time.

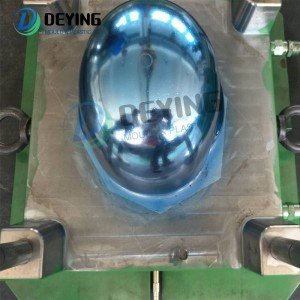

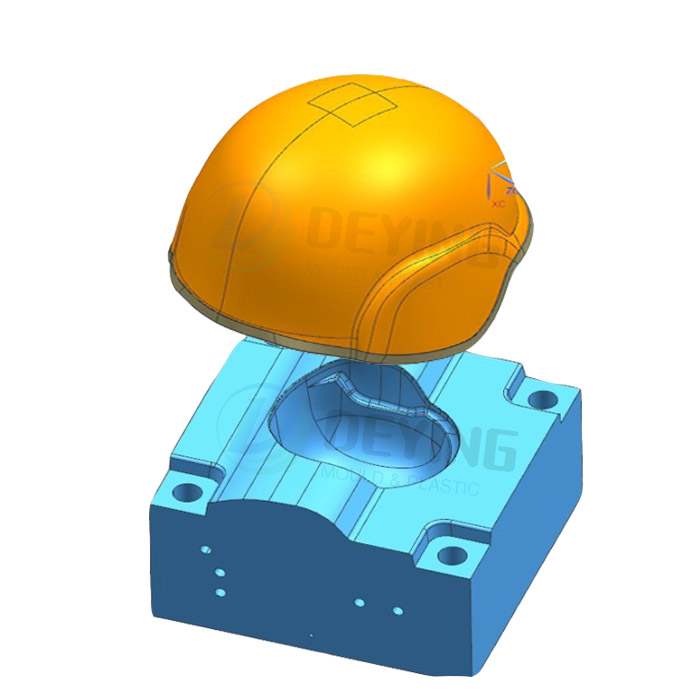

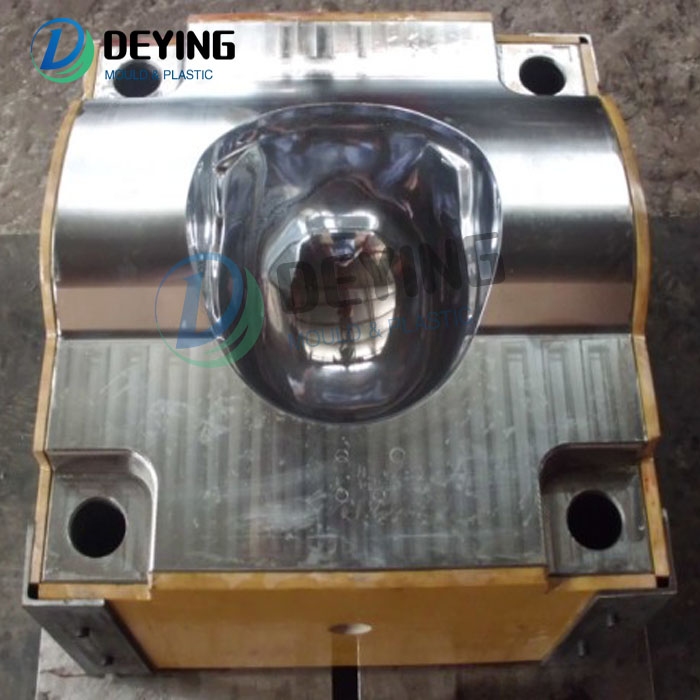

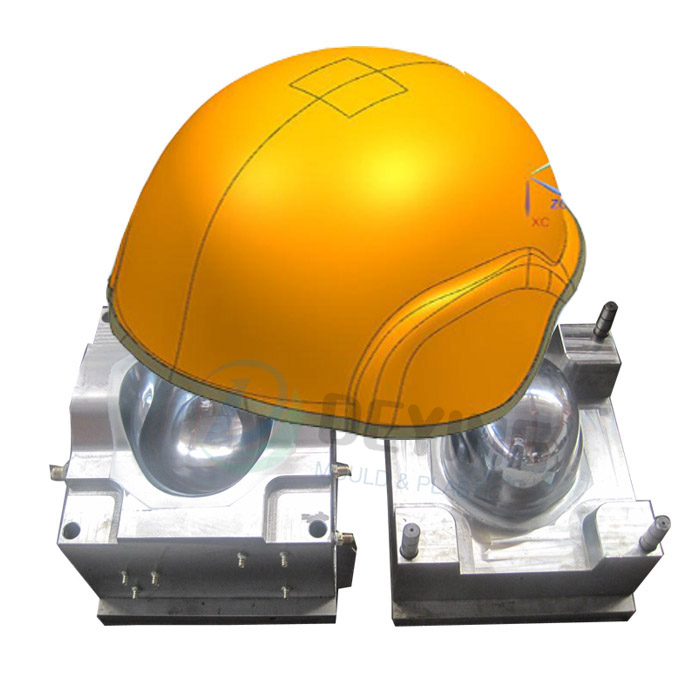

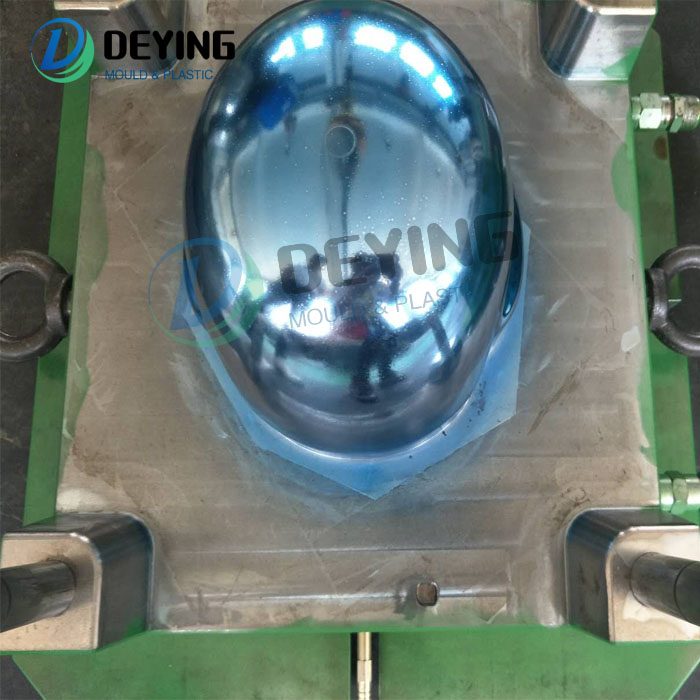

    helmet molds
    bulletproof helmet mould detail_2
    bulletproof helmet mould detail_1
    bulletproof helmet mould detail_3
    bulletproof helmet mould detail_4
    bulletproof helmet mould detail_5
