SMC BMC Compression Insulator block mould

Short Description:


  • Product Specification: Depend on your sample/drawing design
  • Mold Cavity: Single or Multi-cavity
  • Mold Steel: S50C/P20H/718/H13/S136/2316/2738 etc.
  • Mold Runner: Cold/Hot Runner-point way,side way,direct gate
  • Mold Base: LKM,DME,HASCO standard etc,World standard
  • Mould Life: at least 500,000 shots,Depend on mold steel
  • Mould Design Software: UG, PROE, CAD, CAXA etc.
  • Mould Surface Treatment: Mirror polished
  • Export Port: Ningbo/Shanghai
  • Shipping: By Sea or By air
  • Payment: T/T,Western Union,Credit card,E-checking,Paypal,L/C
  • Note: Compression Mould without runner
  • Other: Please inform your requirement when request quote.
  • Product Detail

    Deying Mould Factory Video

    Mold Production Video

    SMC BMC Compression Insulator block mould maker

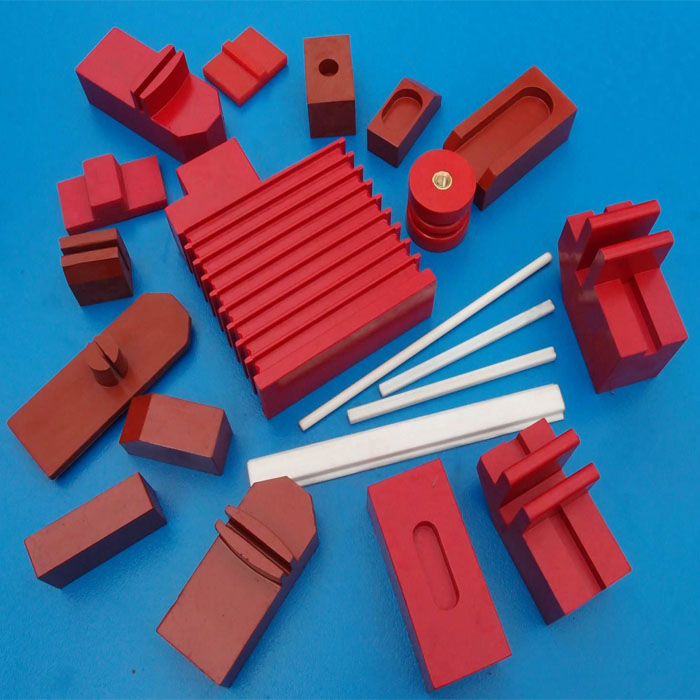

    BMC (DMC) dry-type transformer insulation blocks are used for insulation and fixing on dry-type transformers. It can ensure the stability and insulation performance of dry-type transformers during transportation and long-term operation, and can withstand transformers at work. The high temperature and hot air aging generated in the BMC dry type transformer insulating block is integrally molded by high temperature and high pressure.
    BMC dry-type transformer insulation blocks have high temperature resistance: Since the BMC composite has a heat distortion temperature of 240 degrees, BMC products can maintain good steel properties at high temperatures and can be used at 150 degrees for a long time. Moreover, it has excellent low temperature resistance and can be used at -30 degrees.

    BMC insulation blocks are excellent in mechanical properties. Chemical resistance, long life and anti-aging. The production process of BMC dry-type transformer insulation block is to put a certain amount of BMC material into the metal mold, and under certain temperature and pressure, the BMC material is heated, compressed and filled in the mold to form and solidify in the mold. The BMC dry-type transformer insulation block is obtained.
    The company can now produce more than 20 kinds of dry-type transformer insulation block molds, SMC/BMC molded parts and BMC injection parts forming processing services and SMC/BMC mold design and manufacture.
