UHMWPE Body Armor plate mould

Short Description:

Buy Bulletproof armor plate moulds Find direct Company contact Sophie taizhou huangyan,customized size body armor vest plate mould PE bulletproof vest plate mold,welcome you contact by free


  • Product Specification: Depend on your sample/drawing design
  • Mold Cavity: Single or Multi-cavity
  • Mold Steel: S50C/P20H/718/H13/S136/2316/2738 etc.
  • Mold Runner: Cold/Hot Runner-point way,side way,direct gate
  • Mold Base: LKM,DME,HASCO standard etc,World standard
  • Mould Life: at least 500,000 shots,Depend on mold steel
  • Mould Design Software: UG, PROE, CAD, CAXA etc.
  • Mould Surface Treatment: Mirror polished
  • Export Port: Ningbo/Shanghai
  • Shipping: By Sea or By air
  • Payment: T/T,Western Union,Credit card,E-checking,Paypal,L/C
  • Note: Compression Mould without runner
  • Other: Please inform your requirement when request quote.
  • Product Detail

    Deying Mould Factory Video

    Mold Production Video

    UHMWPE/UHMW is shorthand of Ultra-high-molecular-weight polyethylene which is a subset of the thermoplastic .... UHMWPE plate is made by compression molding forming, UHMWPE are used as composite plates used in armor as well vehicle armor.

    bulletproof armor plate mold-1
    UHMWPE plate mould-1
    bulletproof armor plate mold-2
    bulletproof armor plate mold-3
    bulletproof armor plate mold-4
    8 cavity PE body plate mold
    bulletproof armor plate mould_2

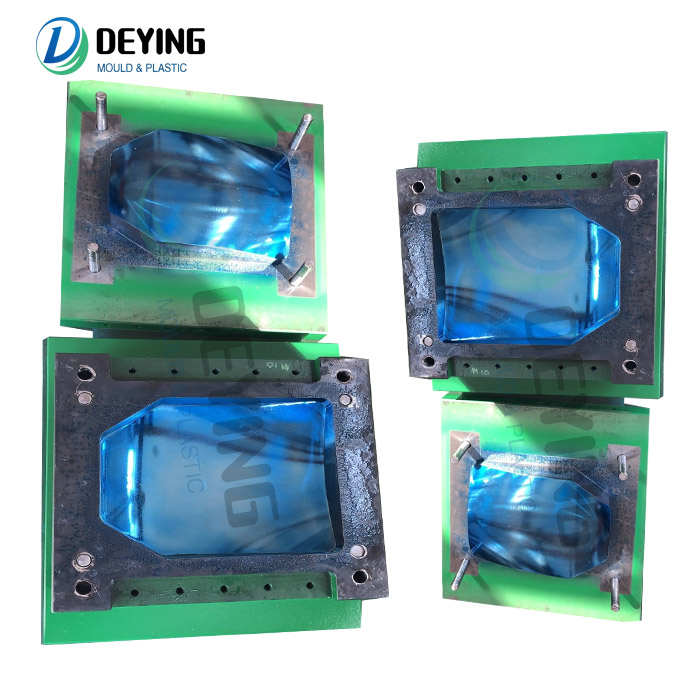

    ceramics armor plate mould-1

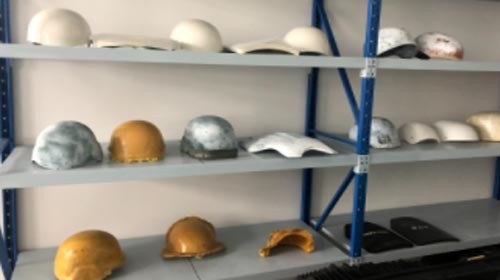

    Principle of Helmet Forming Mould
    3 cavity armor plate mold
    bulletproof armor plate mould_1

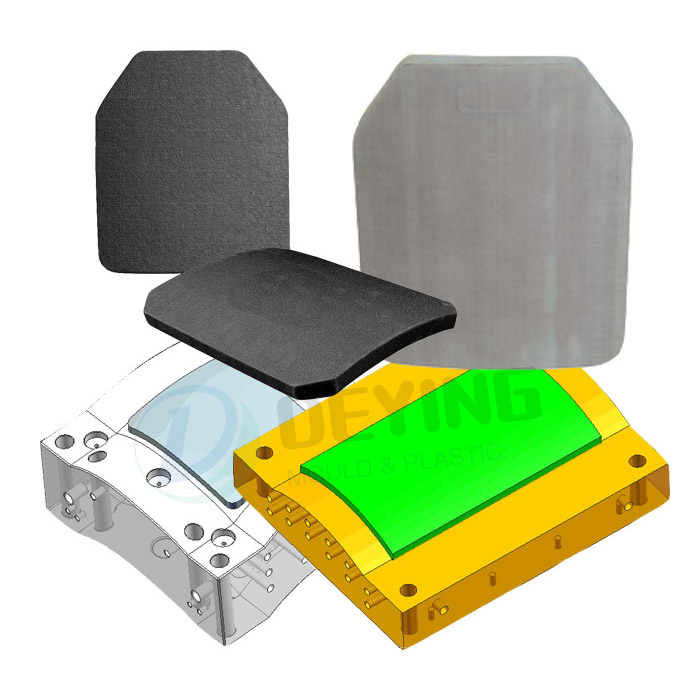

    bulletproof body plate mould-01

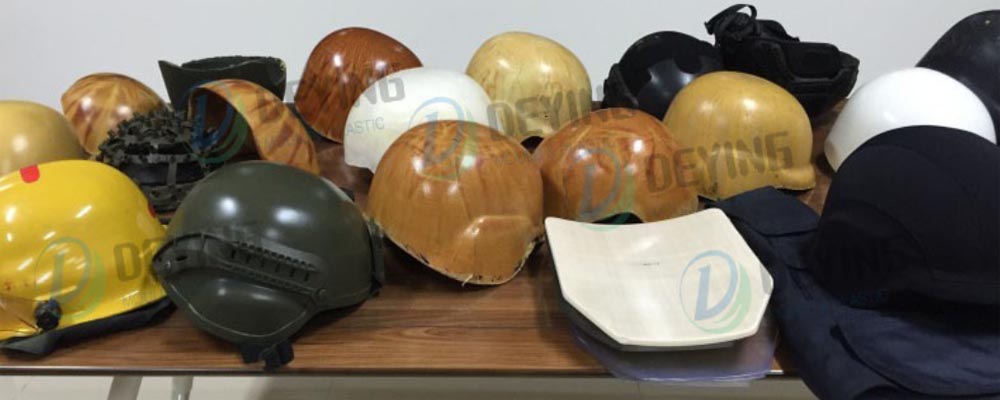

    Principle of Helmet Forming Mould-1

    The step-by-step compression molding process works as follows:

    1-Create molds - Tooling can be produced in a number of ways, including machining, die casting, 3D printing.

    2-Set up the machine - Depending on the specific machine or device you’re using, this may include cleaning the mold, turning on the heat, and other set-up processes.

    3-Prepare charge - Selected the type of material you want to use and determine the proper amount of material. If your charge is too big, excess material will seep out of the mold and result in flash that you will need to manually cut off

    4-Insert charge - Place the charge in the center of the bottom mold.

    5-Compress part - Close the top mold, apply pressure, and wait for your piece to form. Many manufacturers also use heat during the compression process, which softens the raw materials and can help speed up production.

    6-Release part - Remove the finished piece.

    7-Clean part - Resin flash around the edges must be manually cut off or removed, and the part may need to be cleaned before the final assembly.

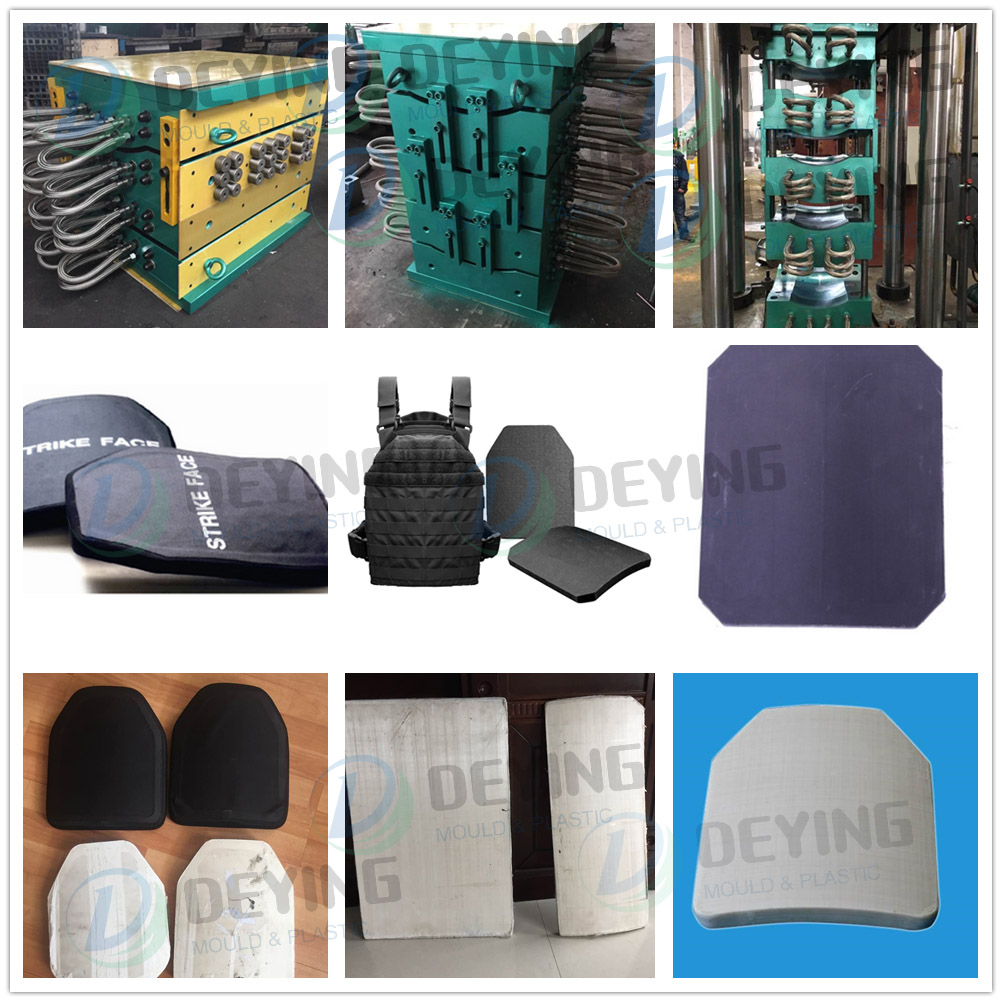

    bulletproof body plate mould detail
